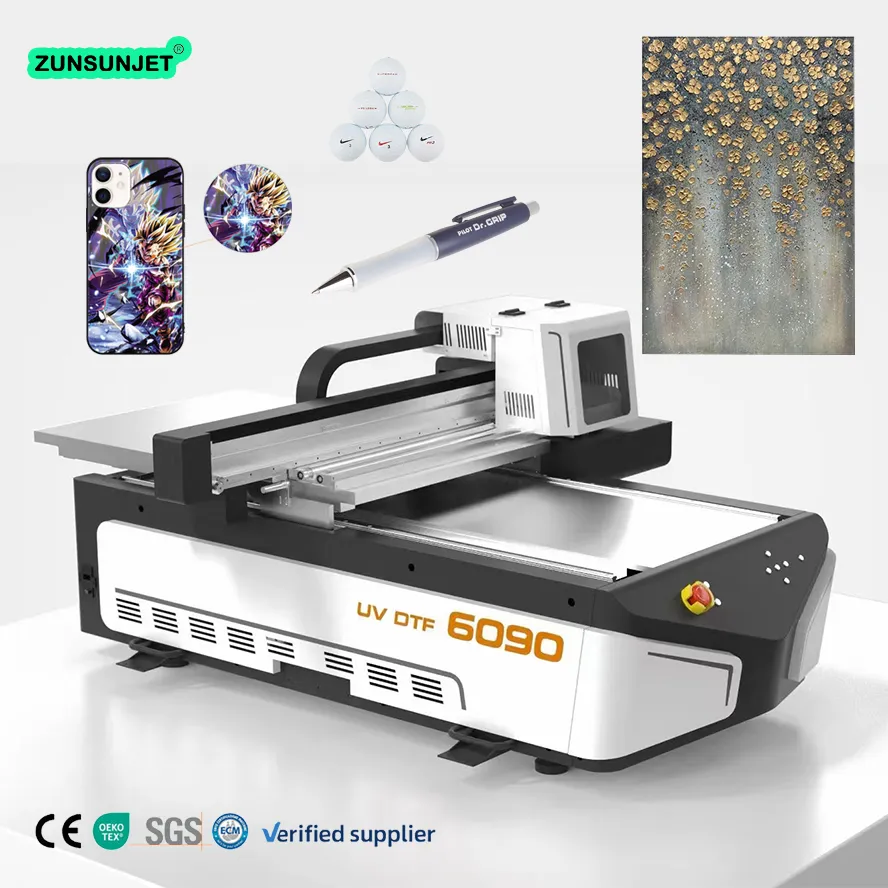

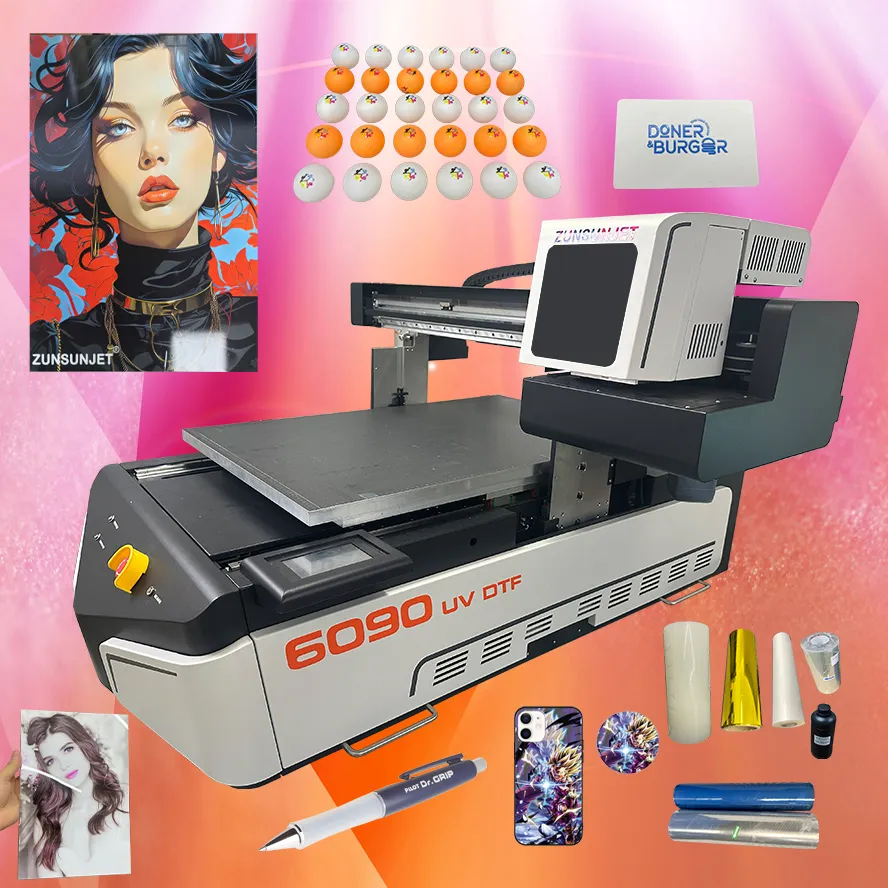

A1 size 6090 UV flatbed printer with visual scanning function

A1 size 6090 UV flatbed printer with visual scanning function

Printheads: 2or3 Epson XP600/ i1600/ i3200 printheads
Print Speed: 1.5 square meters per hour
Print Materials: Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper,metal, wood, porcelain, PVC, ABS, acrylic,aluminum, iron sheet, ceramic tile,glass, marble, granite, paperboard, AB crystal PET Film etc
Ink Types: CMYKWW+V+V1 / CMYKWW+V
Advantages: The 6090 UV flatbed printer combines high precision, efficiency, and versatility, making it an ideal solution for precise and customizable printing on small items.

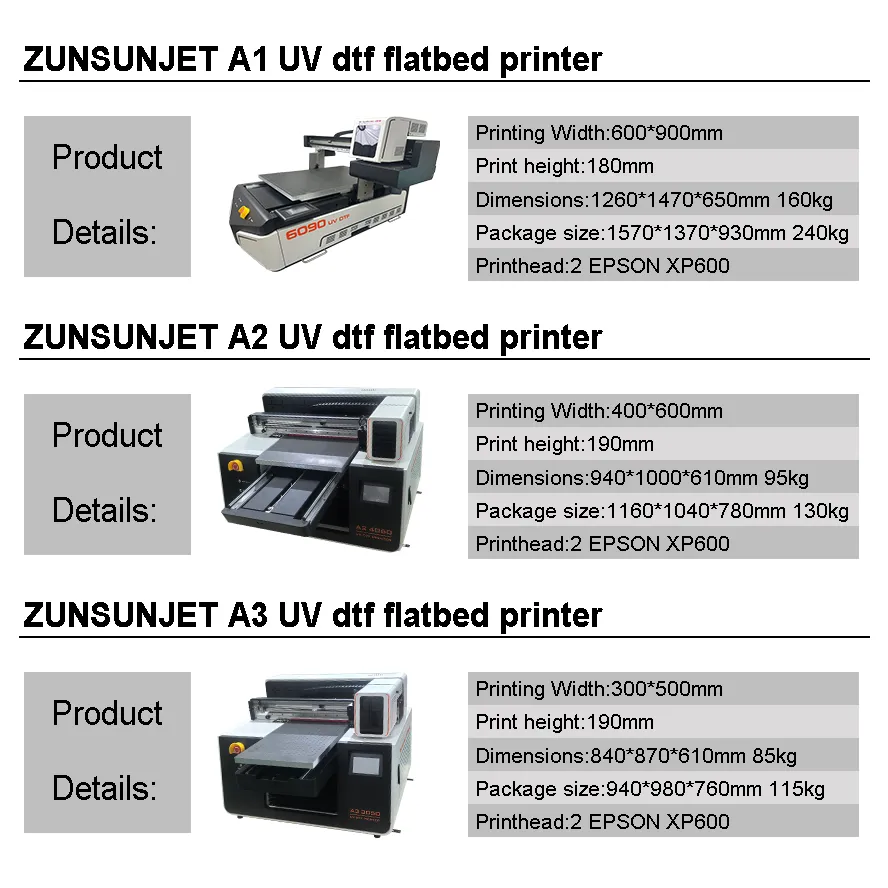

Type	A1 UV DTF Sticker Flatbed Printer
Printhead	2 pieces XP600 printheads
Color	CMYK + White+Varnish
Printing accuracy	1440DPI 2880DPI
Print media	Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper,metal, wood, porcelain, PVC, ABS, acrylic,aluminum, iron sheet, ceramic tile,glass, marble, granite, paperboard, AB crystal PET Film etc
Photo format/type	TIF,JPG,PDF,PNG….
Voltage	1200W / 110/220V 50-60HZ
uv lamp type	Air Cooling
Resolution/Speed	flat and round materials
Media thickness	18 cm(max)
Ink bottle configuration	500 ml bottle for ink supply
Air draft	Aluminum alloy Air Vacuum down adsorb suction platform adsorption table
Ink consumption	15 ML/SQM
Color control	International standard ICC color control, adjustable icc and density, etc
Printing size	6090CM 23.6in35.4in
Ink type	UV Hard/Neutral/Soft uv curing ink

Printing Application Scenarios

The 6090UV flatbed printer offers several advantages:

• High-Precision Printing: Equipped with a visual positioning system, it achieves a positioning accuracy of 0.1 mm, ensuring detailed print quality, especially suitable for precise printing on small items.

• Dual Printhead Configuration: Utilizes two Epson XP600 printheads, delivering high-quality output to meet diverse printing needs. • Robust Construction: Its full aluminum alloy frame enhances stability and durability, ensuring reliable long-term operation.

• Advanced Control System: Features a high-end Hoson control board, improving control precision and performance for a seamless printing process.

• Versatile Material Compatibility: With a print area of 600×900 mm and a maximum print height of 180 mm, it accommodates various sizes and materials. • Efficient Production: The visual positioning system boosts printing efficiency and reduces manual intervention, making it ideal for batch production of small items.

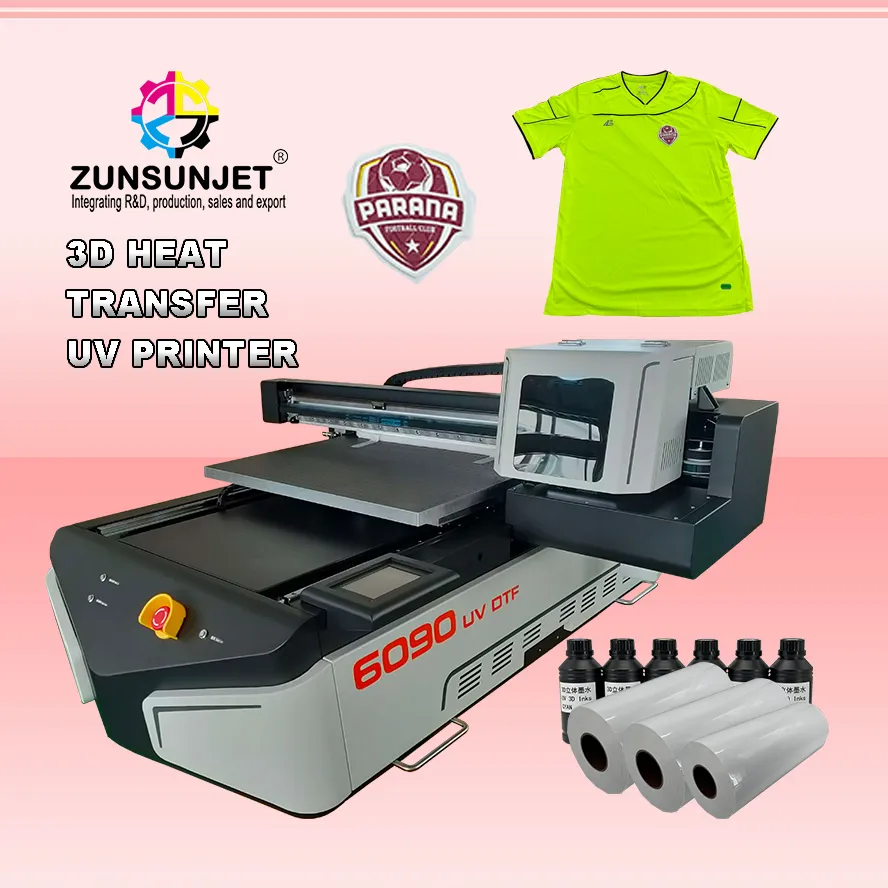

• Multi-Functional Applications: Supports both UV direct printing and UV DTF sticker printing, enabling extensive personalized customization. In summary, the 6090UV flatbed printer’s high precision, efficiency, and versatility make it an excellent choice for precise printing on small items.

UV flat-panel printer, also known as universal flat-panel printer or UV inkjet flatbed printer, breaks through the bottleneck of digital printing technology and reach the level of staring with single page without plate-making and full-color image printing at one time in the true sense. Compared with traditional printing technology, it has many advantages. zunsun UV flatbed printer adopts stable platform technology and advanced stepper motor drive mode. It combines infrared meanwhile, laser positioning, water-cooling and air-cooling to meet long-term continuous work requirement. It has a wide print range and can print products within 180 mm height. zunsun UV inkjet printer can be printed with almost unlimited material.
1. any shape: flat, cylindrical, cambered, rhombic and other irregular shape.
2. most material: plastic, glass, ceramics, paper, paperboard, metal, leather and so on.such as pen, notebook, phone case, mouse, vase, bottle, can, mug, packing box, purse, pad, USB flash disk, electric appliance,suitcase, key ring and other different size products.
*The machine supports varnish printing, covering on the pattern, the visual effect is better, also wear and scratch resistance.

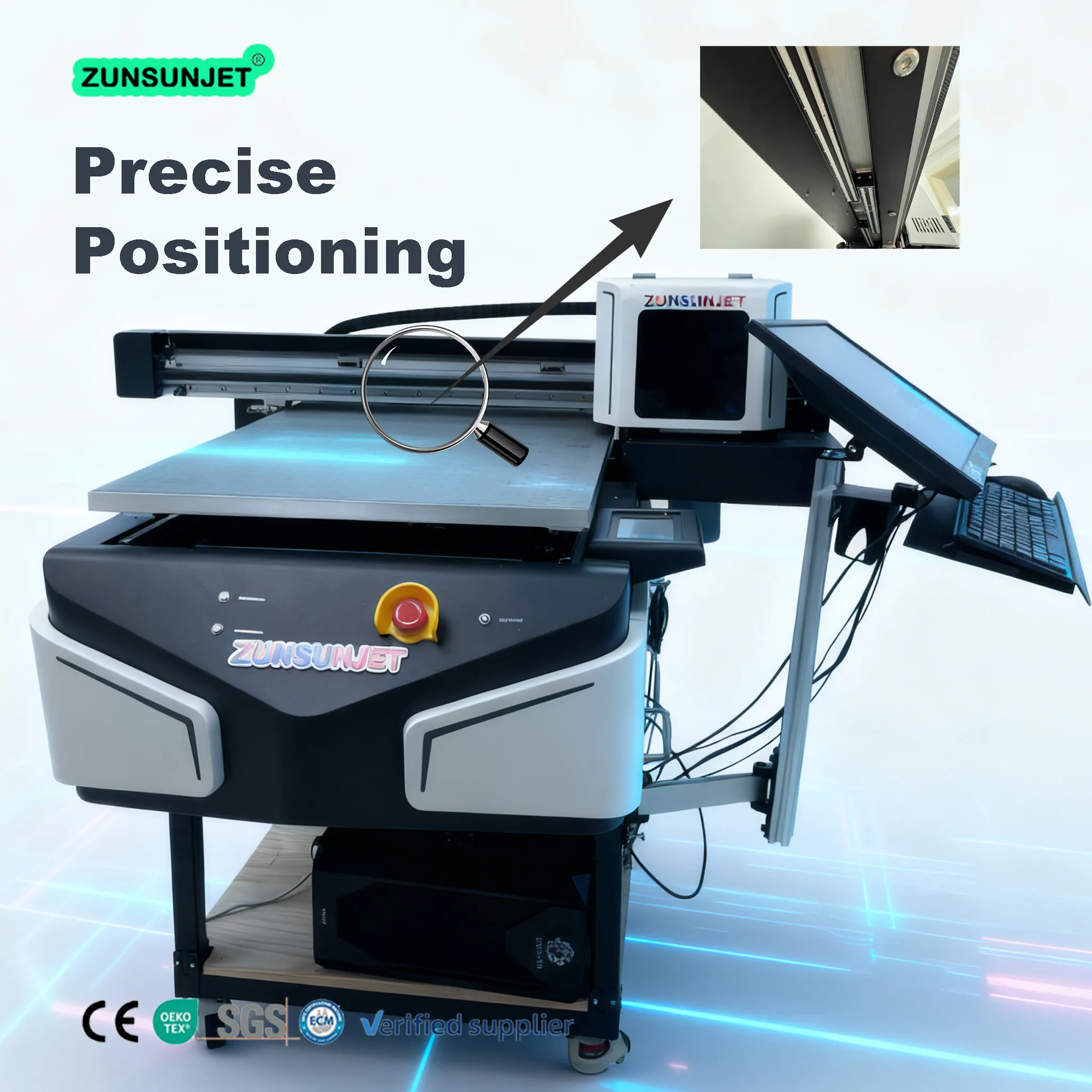

Visual scanning system

High-Precision Printing: Equipped with a visual positioning system, it achieves a positioning accuracy of 0.1 mm, ensuring detailed print quality, especially suitable for precise printing on small items.

Vision positioning motherboard

The visual positioning system boosts printing efficiency and reduces manual intervention, making it ideal for batch production of small items

Robust Construction：Its full aluminum alloy frame enhances stability and durability, ensuring reliable long-term operation.

Versatile Material Compatibility：With a print area of 600×900 mm and a maximum print height of 180 mm, it accommodates various sizes and materials.

2 or 3 PIECES PRINT HEADS： Efficient for Color ink, White and Varnish Printing output at one time, Automatic ink suction and cleaning system.

Tilted UV lamp design：Varnish is smoother and has no texture

ALUMINUM ALLOY BEAM： Thickened Aluminum beam ensure machine in firm structure

CMYK + White+Varnish：Richer color gamut, more vivid colors

Can be used as embossed varnish or bronzing varnish, more functions

Hiwin linear guides The most famous Hiwin linear guides ensure the carriage runs perfectly and stably, achieving high-resolution quality printing

The waste ink cartridge has an alarm system, which will remind you in time when the ink is full

High-precision aluminum alloy printer head bracket, more stable

Hoson board The electrical control of the printer is more stable

Professional printer manufacturer

1:International high tech enterprise focusing on research and development, production, sales, exporting

2:Developing new products to meet more production lines, and OEM service is provided

3:Complete product after-sales information,24 hours online

Get Quote Now!

Welcome to discuss your purchasing requirements with our customer service.

Get the print information you want for free.

Download free sample catalogs
Consult our experts about printer information
Get the latest promotional offers
Get Customized Printing Solutions
One-Stop Procurement Solutions

Ultra-High Precision

Industrial-grade printheads deliver up to 1440dpi resolution for exceptional detail and color accuracy

Multi-Material Compatibility

Prints on various substrates including glass, acrylic, wood, metal, and plastics

High Productivity

Dual-rail system and smart workflow increase productivity by 50% compared to conventional equipment

UV LED Curing Technology

Utilizing next-gen UV LED curing technology for instant drying, eliminating wait time while boosting productivity and reducing energy consumption.

Frequently Asked Questions

1:How can we start to use the printer?

We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.

2:What about the warranty?

We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.

3:What’s the printing cost?

Usually,1 square meter need cost about $1 printing cost with our good quality ink.

4:What about maintenance of the printer?

The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don’t use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.

5.Where can I buy the spare parts and consumables?

We provide spare parts and consumables including ink, glue, varnish, ab film, you can buy directly or from your local market.

6.Does the printer support white and color print at the same time?

Yes, our printers are support white and color print at the same time, also support varnish print.

7. Do you support for drop shipping service?

Yes, contact us and we will help to place the order. It is also allowed to add and resell our printer to your online store with No MOQ & Low operating costs & Automatic fulfillment. Any questions, please feel free to contact us~

All textile material amd colors can be printed. No printing position limitation,such as cuffs and necklines can be printed as well.

First print the pattern on the film, then machine powder and bake it, later cut the printed pattern, finally press it on the garment with a heat press machine

7-8sqm/hour (600DTF) , 3-4sqm/hour (300DTF)
40pcs photos/1sqm ; 10hours/day
2800-3200pcs photos /day (600DTF) ; 1200-1600pcs photos/day(300DTF) applied to garment

each A3 size pattern printing cost only about 0.35$,

DTF Textile Ink$300/ Set (RECAI R-F 60CM DTF Printer),
$350/Sst (RECAI R-F 30CM DTF Printer)

DTF ink ： 50 dollar/liter;
print film : 0.3m*100m, 70$/roll( 0.6m*100m,150$/roll );
powder : 10$/kg.
You can buy these materials from local store.
