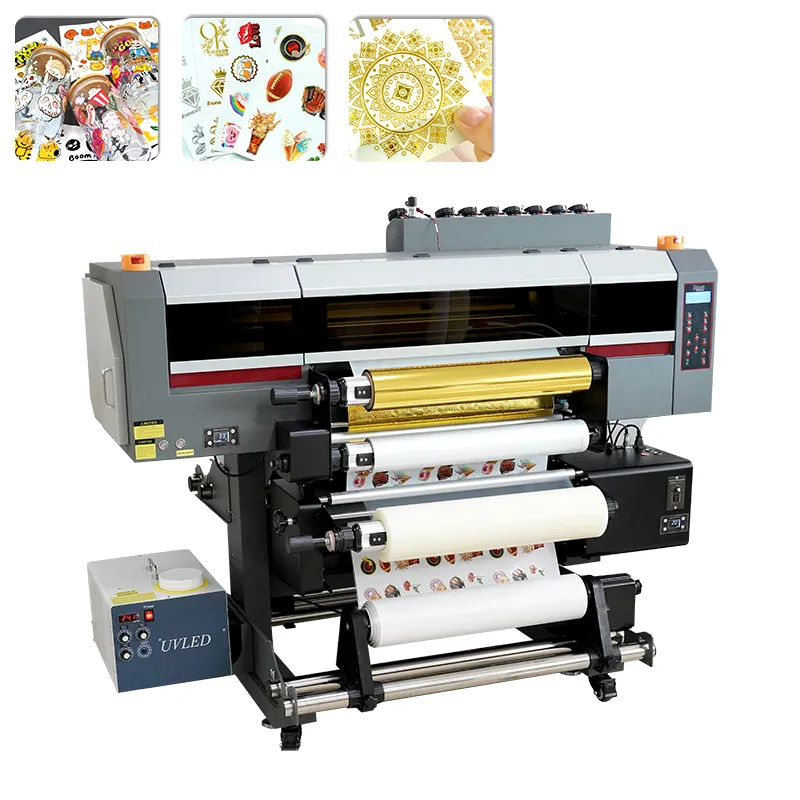

2 in 1 A1 Roll to Roll UV DTF Sticker Printer gold foil sticker with 3-4 printheads

2 in 1 A1 Roll to Roll UV DTF Sticker Printer gold foil sticker with 3-4 printheads

Printheads: 3 or 4 pc I3200/i1600/xp600
Print Speed: 8 square meters per hour
Print Materials: AB film, release paper, coated paper
Ink Types: CMYK+W+V
Advantages: AB film sticker printing, gold foil sticker printing, partial gold foil sticker printing, transparent laser sticker printing

Type	2 in 1 A1 UV DTF Sticker Printer( Crystal Label Printer)
Printhead	3 or 4 pc I3200/i1600/xp600
Color	CMYK+W+V
Printing accuracy	2880dpi
Heating method	Rubber roller heating
Automatic Laminating System	Yes
Print head cleaning	Automatic
Ink Type	UV Ink /eco-solvent ink
Printing Size	≤600mm
RIP software	Maintop/Photoprint/Ripint
Operating system	Windows
Printing speed	6pass 8.0㎡/h
Working environment	15-30℃
Relative humidity	40-60%
Voltage	110-220V/50-60HZ
Package size/weight	1890X1250X1570mm(LXWXH)/415kg

Printing Application Scenarios

The UV STICKER DTF PRINTER is an innovative printing solution that offers numerous benefits and features:

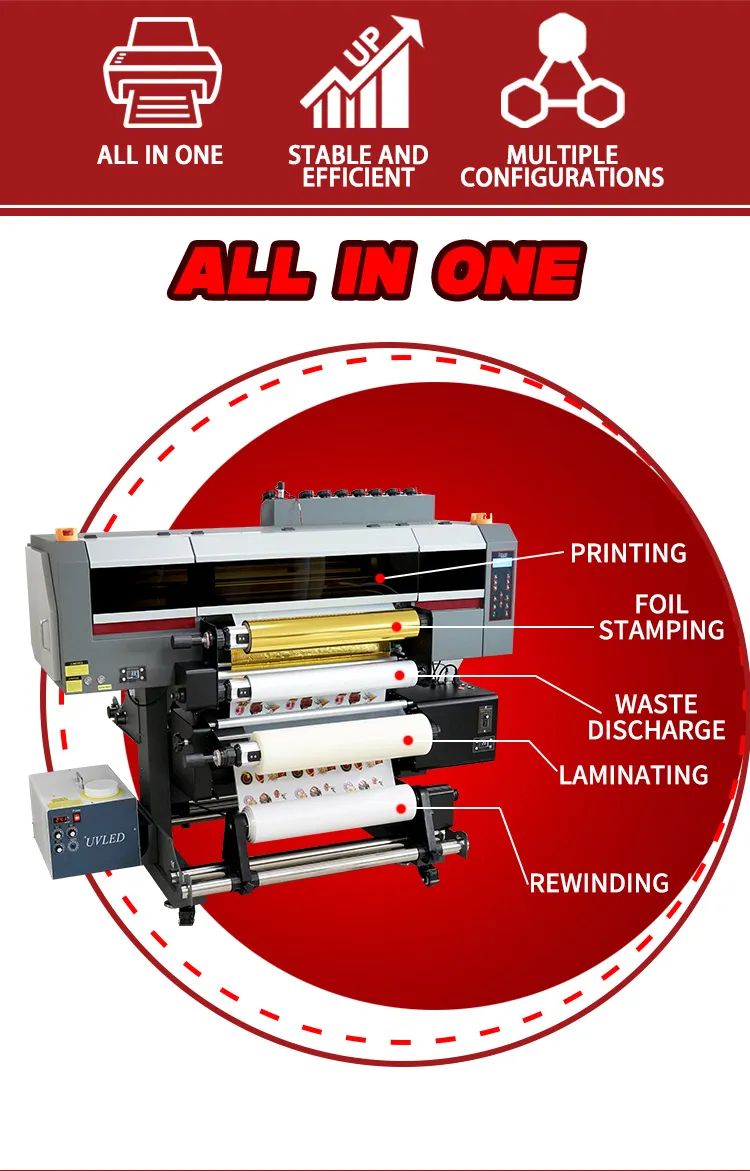

1. **2-in-1 Functionality**: Combines traditional UV printing and laminating processes into a single step, eliminating the need for separate laminators and streamlining the workflow.

2. **Versatile Printing Options**: Supports both common color printing and golden foil sticker printing, providing a wide range of creative possibilities.

3. **High-Quality Output**: Delivers bright colors, high-definition prints, and offers unlimited material, size, and shape options. It also features low cost, convenient positioning, and high-efficiency printing.

4. **Full Automation and Easy Operation**: The printer is user-friendly and fully automated, with an auto-cutting feature that eliminates the need for manual typesetting and cutting lines. It can perform half-cut, full-cut, and a combination of both on a single sheet.

5. **Intelligent Cutting**: Printers and cutting machines can be interconnected in a one-to-many setup to execute cutting instructions efficiently.

6. **Customized UV Labels**: For those who need customized UV labels, the factory offers direct sales with 24-hour delivery and online service.

This UV STICKER DTF PRINTER is designed to break the limitations of traditional flatbed printing, offering enhanced work efficiency and flexibility in printing products of various heights, shapes, and sizes.

zunsun 2 in 1 UV Sticker DTF printer A1 takes printing technology to a new height, which is the first one to integrate the laminating process into the printing process. Shapes, sizes and uneven surfaces are no longer limitations of printing in front of this product.

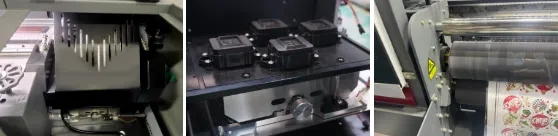

With three original Epson i3200 print heads, high color reproduction and faster printing speed

English control panel buttons for easier operation

white ink stirring, white ink circulation, and ink cartridge alarm system

Three water-cooled UV lamps, high power, more stable, easy to operate, adjustable matte UV dtf sticker, powerful function

Well-known brand servo motor, more stable and high precision

Aviation aluminum honeycomb nest vacuum adsorption platform, ultra-small holes, large suction power

Two printing configurations, can directly spray glue and apply AB film.

The trolley ink stack and the automatic lifting ink stack effectively protect the print head. The negative pressure ink bag is used to effectively ensure the ink flow and continuous printing.

The lamination rubber roller has a stable heating function and has better film release effect.

Professional printer manufacturer

1:International high tech enterprise focusing on research and development, production, sales, exporting

2:Developing new products to meet more production lines, and OEM service is provided

3:Complete product after-sales information,24 hours online

Get Quote Now!

Welcome to discuss your purchasing requirements with our customer service.

Get the print information you want for free.

Download free sample catalogs
Consult our experts about printer information
Get the latest promotional offers
Get Customized Printing Solutions
One-Stop Procurement Solutions

Ultra-High Precision

Industrial-grade printheads deliver up to 1440dpi resolution for exceptional detail and color accuracy

Multi-Material Compatibility

Prints on various substrates including glass, acrylic, wood, metal, and plastics

High Productivity

Dual-rail system and smart workflow increase productivity by 50% compared to conventional equipment

UV LED Curing Technology

Utilizing next-gen UV LED curing technology for instant drying, eliminating wait time while boosting productivity and reducing energy consumption.

Frequently Asked Questions

All textile material amd colors can be printed. No printing position limitation,such as cuffs and necklines can be printed as well.

First print the pattern on the film, then machine powder and bake it, later cut the printed pattern, finally press it on the garment with a heat press machine

7-8sqm/hour (600DTF) , 3-4sqm/hour (300DTF)
40pcs photos/1sqm ; 10hours/day
2800-3200pcs photos /day (600DTF) ; 1200-1600pcs photos/day(300DTF) applied to garment

each A3 size pattern printing cost only about 0.35$,

DTF Textile Ink$300/ Set (RECAI R-F 60CM DTF Printer),
$350/Sst (RECAI R-F 30CM DTF Printer)

DTF ink ： 50 dollar/liter;
print film : 0.3m*100m, 70$/roll( 0.6m*100m,150$/roll );
powder : 10$/kg.
You can buy these materials from local store.
