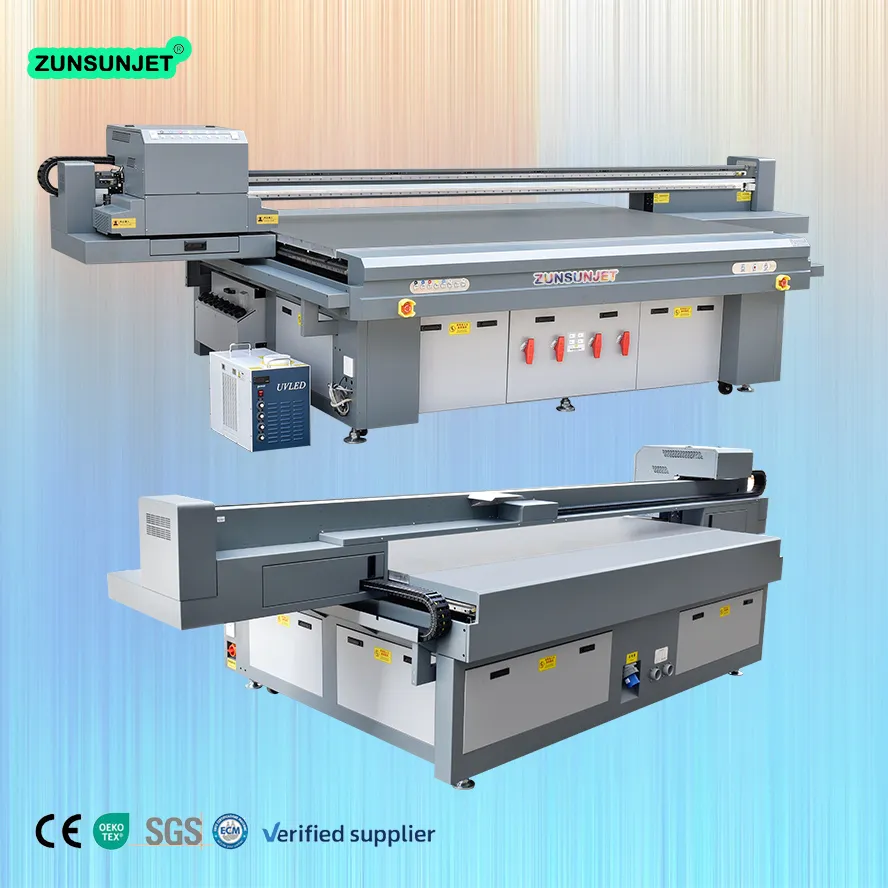

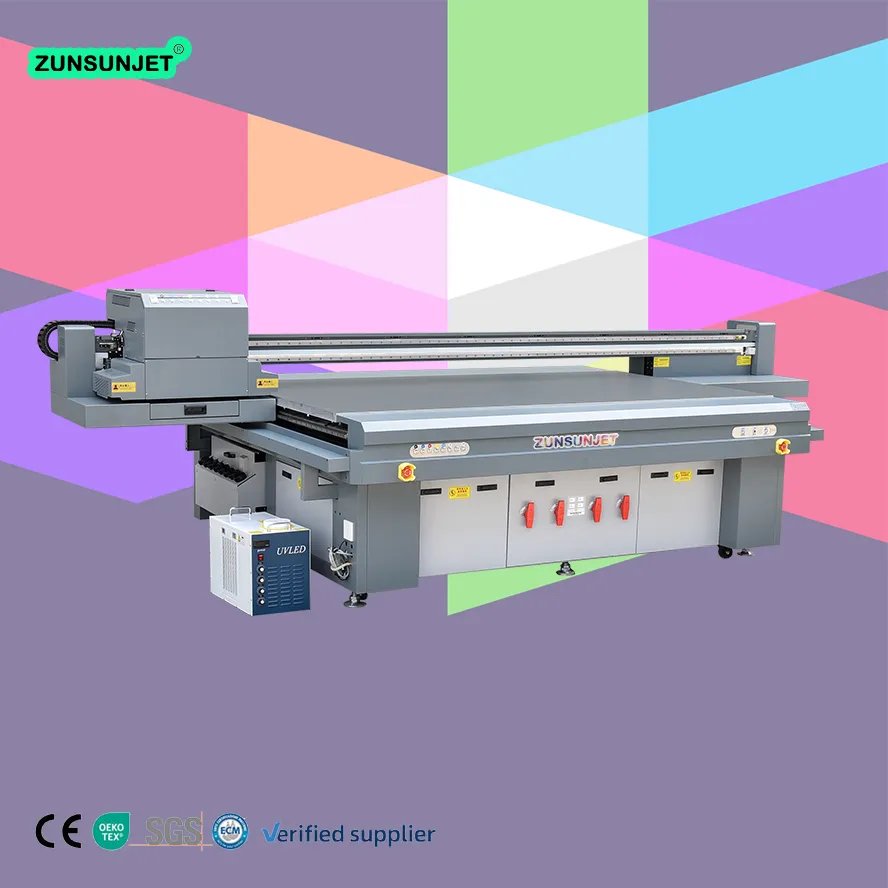

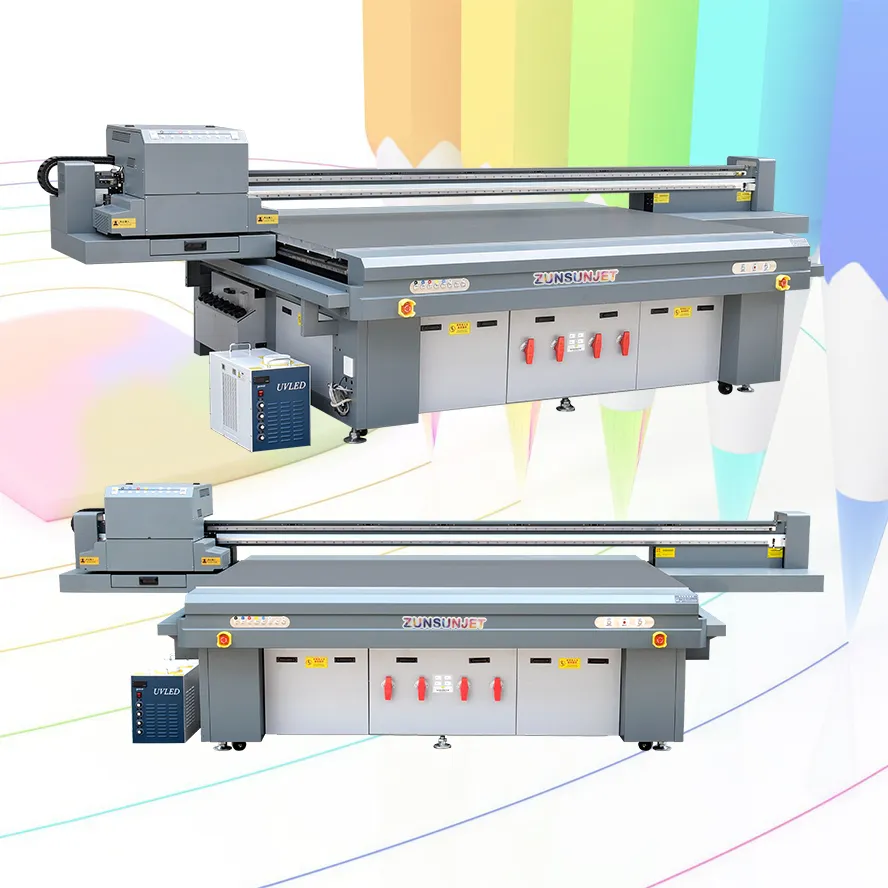

2.25mx1.20m size 2513 UV flatbed printer with i3200 print heads

2.25mx1.20m size 2513 UV flatbed printer with i3200 print heads

Printheads: 2-8 i3200-U1/Ricoh Gn5/Ricoh Gn6

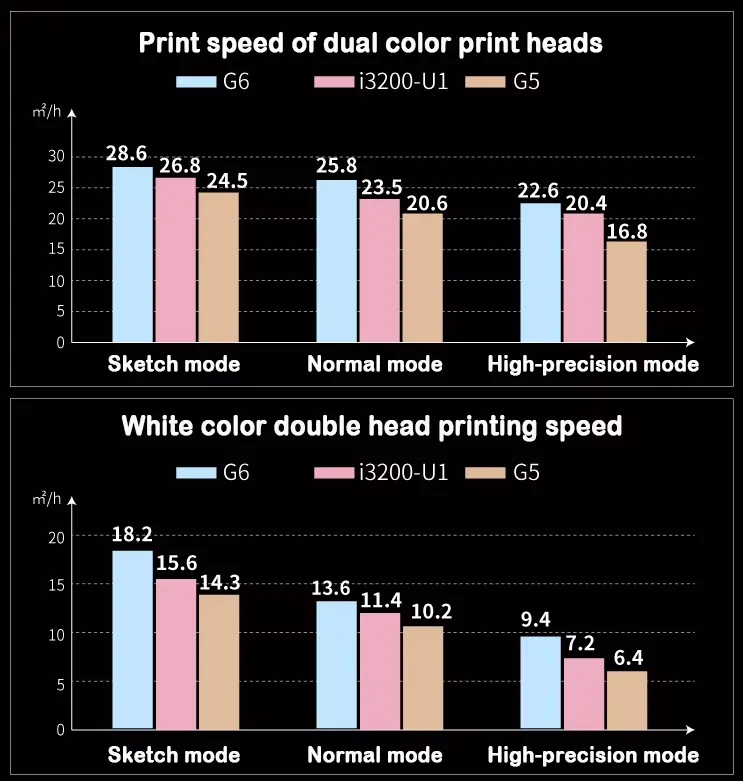

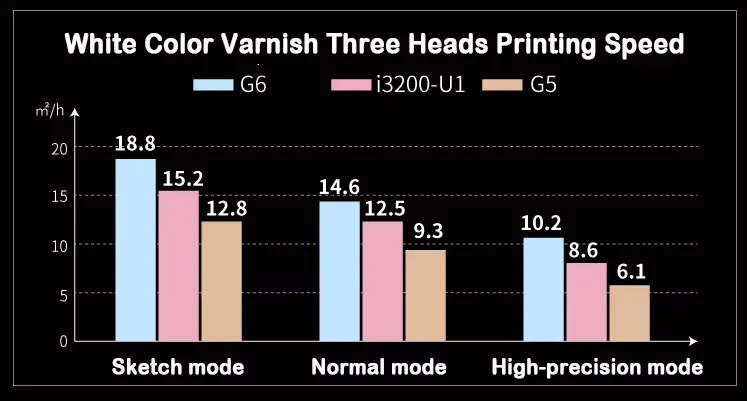

Print Speed: 20 square meters per hour
Print Materials: Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper,metal, wood, porcelain, PVC, ABS, acrylic,aluminum, iron sheet, ceramic tile,glass, marble, granite, paperboard, AB crystal PET Film etc
Ink Types: Four-color / Six-color C+M+Y+K+LM+LC+W (White) + V (Gloss) Supporting Dual White Printing
Advantages: The 2513 UV flatbed printer combines high precision, efficiency, and versatility, making it an ideal solution for precise and customizable printing on small items.

Type	2513 UV Flatbed Printer
Printhead	i3200-U1/Ricoh Gn5/Ricoh Gn6
Quantity	2-8 units
Print Width	2500x1300mm / 3200x2000mm
Print Mode	Various print modes to meet the needs of different industries
Ink and Curing Method	UV Ink / LED Curing
Ink Colors	Four-color / Six-color C+M+Y+K+LM+LC+W (White) + V (Gloss) Supporting Dual White Printing
Ink Cartridge Capacity	3500ml per color
Print Thickness	120mm
Ink Supply Method	Negative pressure continuous ink supply system
Print Media	PVC Board / Acrylic / Organic Board / Glass / Wood Board / Panel / Wall
Print Platform	Dual negative pressure, dual suction, four-zone independent control
RIP Software	Photoprint/PF and others (optional)
Power (W)	6000W
Operating Environment	Temperature: 20-28°C, Humidity: 40-70%Rh, Independent, clean, and well-ventilated working space
Machine Dimensions	4500mm x 2200mm x 1500mm (Length x Width x Height)
Packaging Dimensions	4600mm x 2300mm x 1700mm (Length x Width x Height)
Net Weight	15000kg
Gross Weight	16000kg

Printing Application Scenarios

Technical Specifications:

Printhead: Equipped with 3-4 i3200-U printheads, which are known for their high-quality output. The printer is also compatible with Ricoh GEN5 and GEN6 printheads, providing flexibility and options for upgrades.

Size: The printing area measures 250cm by 130cm, suitable for large format prints.

Resolution: The printer boasts a high resolution of 24000dpi, ensuring photo-quality prints with fine detail.

The machine is capable of printing on a variety of rigid substrates, making it ideal for both indoor and outdoor advertisements, decorative items, DIY promotional products, and gifts.

It can handle a range of materials including Acrylic, Wood, Glass, Metal, and PVC Board, among others.

Product advantages

1.Provide customers with various sample printing services for free；

2.Specializing in the production of various flat uv printers；

3.Spot goods can be shipped on the same day, customized products can be shipped within 7 days;

4.Complete product after-sales information, available for 2 years and 24 hours online after-sales service;

5.Product transportation can provide door-to-door service, and provide customers with free logistics insurance.

Variable Droplet Technology

Our technology allows for the use of different inkjet schemes based on various printing materials, ensuring precise color printing with distinct layers and smooth transitions.

Automatic Anti-Clogging Technology

When the printer is not in operation, the print head automatically performs a quick spray to maintain moisture, preventing ink from solidifying and causing blockages.

Variable Droplet Technology: Achieving High-Definition Vibrant Colors

Enhancing every detail with precision in color, brightness, and contrast, our technology elevates the image quality by accurately controlling the color gamut, resulting in a more vivid and detailed presentation.

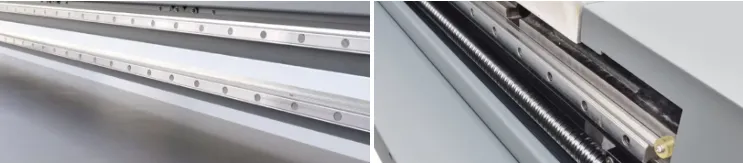

X-Axis Transmission System

Equipped with a dual linear thickened guide rail drive system, it ensures smoother and more stable movement of the carriage, enhancing overall precision and reliability.

Y-Axis Transmission System

Incorporates a linear guide rail and dual screw rod drive control system to guarantee stability during Y-axis motion. This system ensures precise movement along the Y-axis,enhancing accuracy and operational consistency.

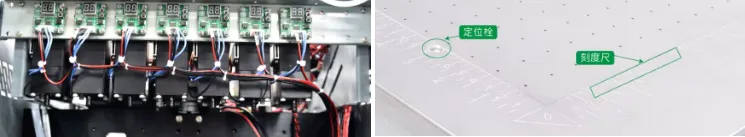

Ink Temperature Control System

The intelligent ink temperature control system ensures that every ink channel maintains a consistent temperature. This guarantees smoother printing performance and improved print precision.

Positioning Pin Design

When placing the print material onto the platform, precise alignment must be conducted to ensure the material is straight and aligned with the printing surface. The machine is equipped with positioning pins and a ruler to simplify this process.

Nozzle Collision Prevention Device The nozzle is equipped with collision prevention devices on both ends. In the event of encountering an obstacle during the printing process, the machine will automatically cease operation, effectively protecting the nozzle and extending its service life.

Home Position Reset Mechanism The home position reset mechanism allows for the automatic braking and return of the ink carriage to its original position, streamlining the printing process for greater convenience.

Intelligent Ink Level Alert System This system is designed to alert users when the ink level in the cartridge falls below a set threshold. It features a flashing light and an audible alarm to prompt the user to refill the ink.

Professional printer manufacturer

Surpass Your Imagination with Every Imaging Step

Leveraging Advanced Technology for High-Definition Quality

Color and White Color Effects

Synchronous output of color and white ink, completing the sandwich effect in one go, achieving different images on both sides of the material.

High Depth Printing EffectsPrinting Effects

Breaking through traditional flat printing, this technology enables high-variety/depth printing on irregular surfaces, expanding the field of printing.

White and Color Ink Simultaneous Output Synchronous output of white and color inks, achieving high-quality output while reducing printing costs.

Embossing Effect Printing

The embossing print is created by stacking white ink and then cured with UV light, enriching the color printing effect and not limited by material types.

Innovative Technology for the Future

Each process and ink application is unique, and the use of white and color inks achieves excellent color imaging. Durable and Long-Lasting Products with Transparent Varnish

Use of Varnish:

The application of varnish adds a vibrant gloss and a “high-gloss finish” to the products, realizing a unique and high-value design. The transparent varnish not only gives the surface a glossy feel but also provides a better protective coating, making the products more durable and long-lasting.

The machine supports varnish printing, covering on the pattern, the visual effect is better, also wear and scratch resistance.

1:International high tech enterprise focusing on research and development, production, sales, exporting

2:Developing new products to meet more production lines, and OEM service is provided

3:Complete product after-sales information,24 hours online

Get Quote Now!

Welcome to discuss your purchasing requirements with our customer service.

Get the print information you want for free.

Download free sample catalogs
Consult our experts about printer information
Get the latest promotional offers
Get Customized Printing Solutions
One-Stop Procurement Solutions

Ultra-High Precision

Industrial-grade printheads deliver up to 1440dpi resolution for exceptional detail and color accuracy

Multi-Material Compatibility

Prints on various substrates including glass, acrylic, wood, metal, and plastics

High Productivity

Dual-rail system and smart workflow increase productivity by 50% compared to conventional equipment

UV LED Curing Technology

Utilizing next-gen UV LED curing technology for instant drying, eliminating wait time while boosting productivity and reducing energy consumption.

Frequently Asked Questions

1:How can we start to use the printer?

We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.

2:What about the warranty?

We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.

3:What’s the printing cost?

Usually,1 square meter need cost about $1 printing cost with our good quality ink.

4:What about maintenance of the printer?

The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don’t use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.

5.Where can I buy the spare parts and consumables?

We provide spare parts and consumables including ink, glue, varnish, ab film, you can buy directly or from your local market.

6.Does the printer support white and color print at the same time?

Yes, our printers are support white and color print at the same time, also support varnish print.

7. Do you support for drop shipping service?

Yes, contact us and we will help to place the order. It is also allowed to add and resell our printer to your online store with No MOQ & Low operating costs & Automatic fulfillment. Any questions, please feel free to contact us~

All textile material amd colors can be printed. No printing position limitation,such as cuffs and necklines can be printed as well.

First print the pattern on the film, then machine powder and bake it, later cut the printed pattern, finally press it on the garment with a heat press machine

7-8sqm/hour (600DTF) , 3-4sqm/hour (300DTF)
40pcs photos/1sqm ; 10hours/day
2800-3200pcs photos /day (600DTF) ; 1200-1600pcs photos/day(300DTF) applied to garment

each A3 size pattern printing cost only about 0.35$,

DTF Textile Ink$300/ Set (RECAI R-F 60CM DTF Printer),
$350/Sst (RECAI R-F 30CM DTF Printer)

DTF ink ： 50 dollar/liter;
print film : 0.3m*100m, 70$/roll( 0.6m*100m,150$/roll );
powder : 10$/kg.
You can buy these materials from local store.
