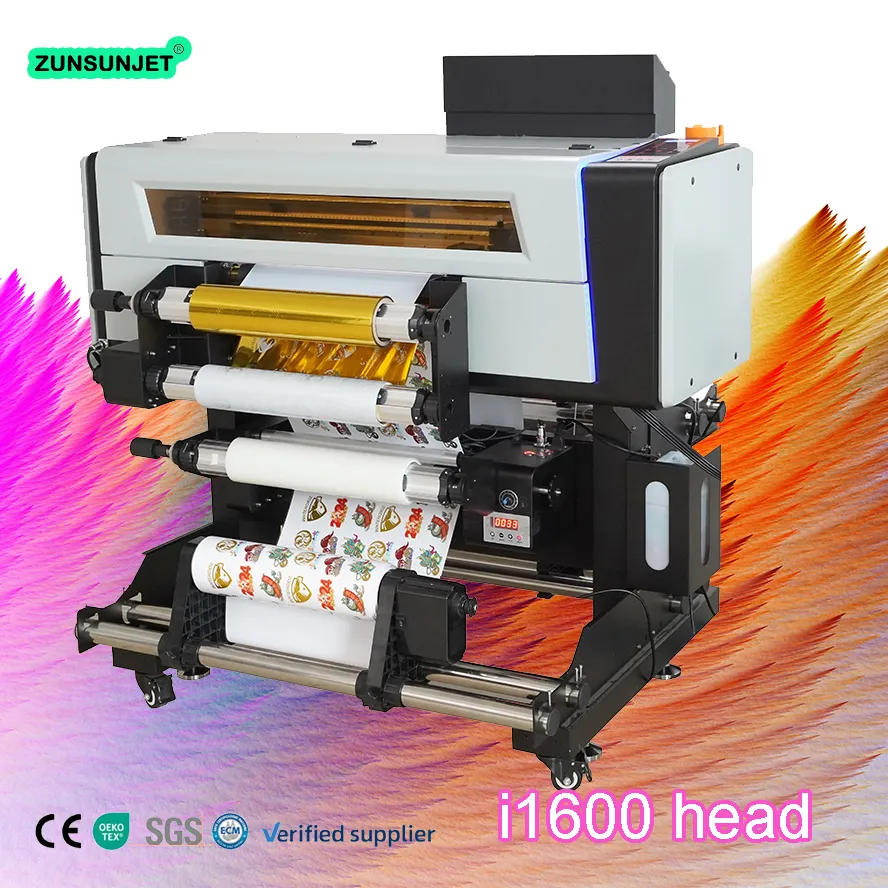

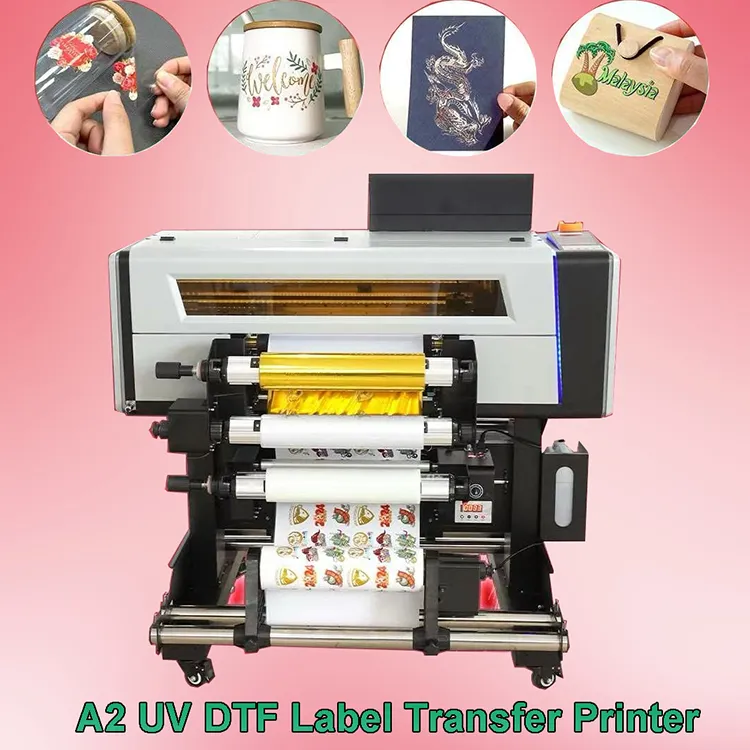

42CM Wide A2 Format UV DTF Printer with Double Lamination & Gold Foil, by Manufacturer
A2 42CM wide double lamination UV DTF gold foil sticker printer
- Printheads: 4 Epson XP600 i1600 printheads
- Print Speed: 5 square meters per hour
- Print Materials: AB film, release paper, coated paper
- Ink Types: CMYKLcLm+V+V1+G / CMYK+V+V1+G
- Advantages: AB film sticker printing, gold foil sticker printing, partial gold foil sticker printing, transparent laser sticker printing
Quote Now
| Type | 2 in 1 A2 UV DTF Sticker Printer( Crystal Label Printer) |
| Printhead | 4 Epson i1600/TX800/XP00/F1080 print heads |
| Color | CMYK+LC+LM+W+V+(glue) |
| Printing accuracy | 720dpi / 1080dpi /1440dpi |
| Heating method | Rubber roller heating |

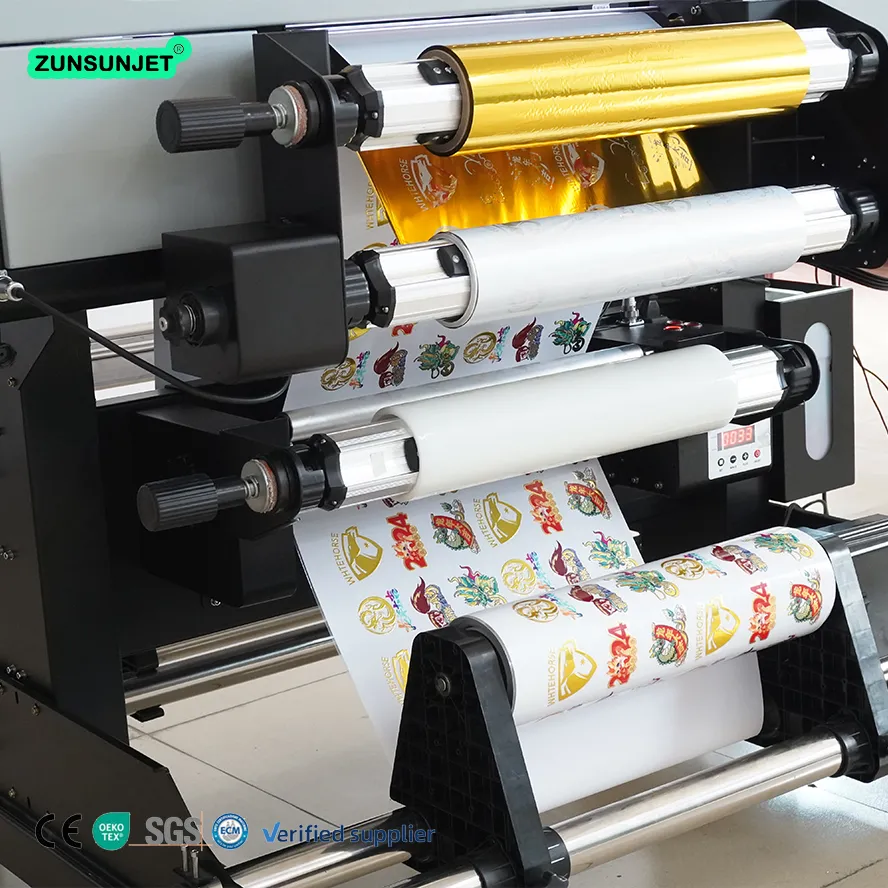

| Automatic Laminating System | Yes |
| Print head cleaning | Automatic |
| Printing Size | ≤420mm |
| RIP software | Maintop/Photoprint/Ripint |
| Operating system | Windows 7/Windows 10 |
| Printing speed | 6pass 4.0㎡/h 8pass 3.5㎡/h 12pass 3.0㎡/h |
| Working environment | 15-30℃ |
| Relative humidity | 40-60% |
| Voltage | 110-220V/50-60HZ |
| Machine size/weight | 1350mm*500mm*580mm/100kg |
| Package size/weight | 1700mm*810mm*840mm/142kg |
Printing Application Scenarios
Proven UV label printing experience. Two years of experience in AB film and UV transfer printing. Direct printing of adhesive labels. Finished products exhibit excellent initial viscosity, temperature resistance, and long-term effectiveness.
Direct printing with glue + gold stamping varnish 9-color UV labels can be put on paper bags, gift boxes, etc.
1. any shape: flat, cylindrical, cambered, rhombic and other irregular shape.
2. most material: plastic, glass, ceramics, paper, paperboard, metal, leather and so on.such as pen, notebook, phone case, mouse, vase, bottle, can, mug, packing box, purse, pad, USB flash disk, electric appliance.
suitcase, key ring and other different size products.
*The machine supports varnish printing, covering on the pattern, the visual effect is better, also wear and scratch resistance.
Professional printer manufacturer
Get the print information you want for free.
- Download free sample catalogs
- Consult our experts about printer information
- Get the latest promotional offers
- Get Customized Printing Solutions
- One-Stop Procurement Solutions
Get it Free
Frequently Asked Questions
All textile material amd colors can be printed. No printing position limitation,such as cuffs and necklines can be printed as well.
First print the pattern on the film, then machine powder and bake it, later cut the printed pattern, finally press it on the garment with a heat press machine
7-8sqm/hour (600DTF) , 3-4sqm/hour (300DTF)
40pcs photos/1sqm ; 10hours/day
2800-3200pcs photos /day (600DTF) ; 1200-1600pcs photos/day(300DTF) applied to garment
each A3 size pattern printing cost only about 0.35$,
DTF Textile Ink$300/ Set (RECAI R-F 60CM DTF Printer),
$350/Sst (RECAI R-F 30CM DTF Printer)
DTF ink ： 50 dollar/liter;
print film : 0.3m*100m, 70$/roll( 0.6m*100m,150$/roll );
powder : 10$/kg.
You can buy these materials from local store.
