Introduction

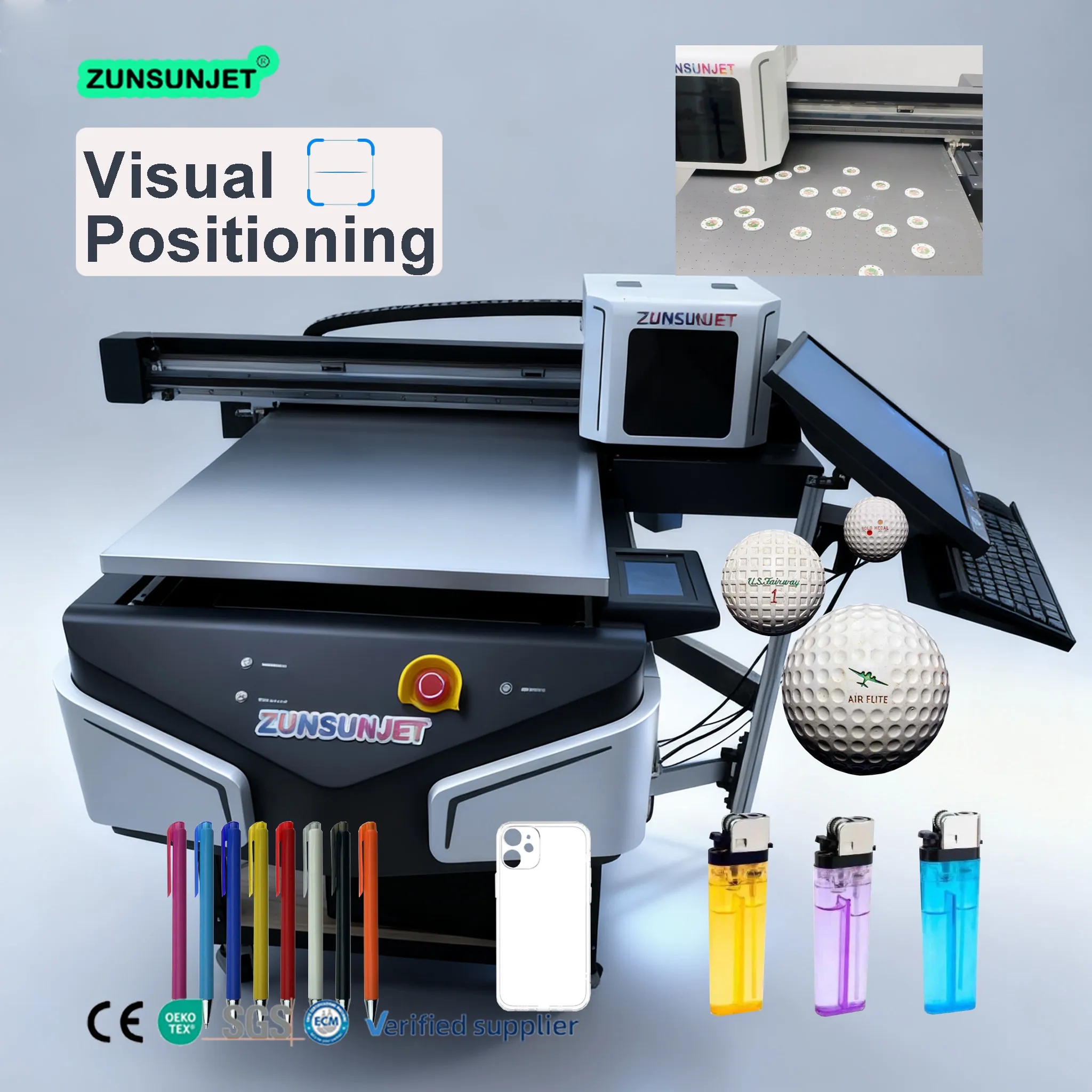

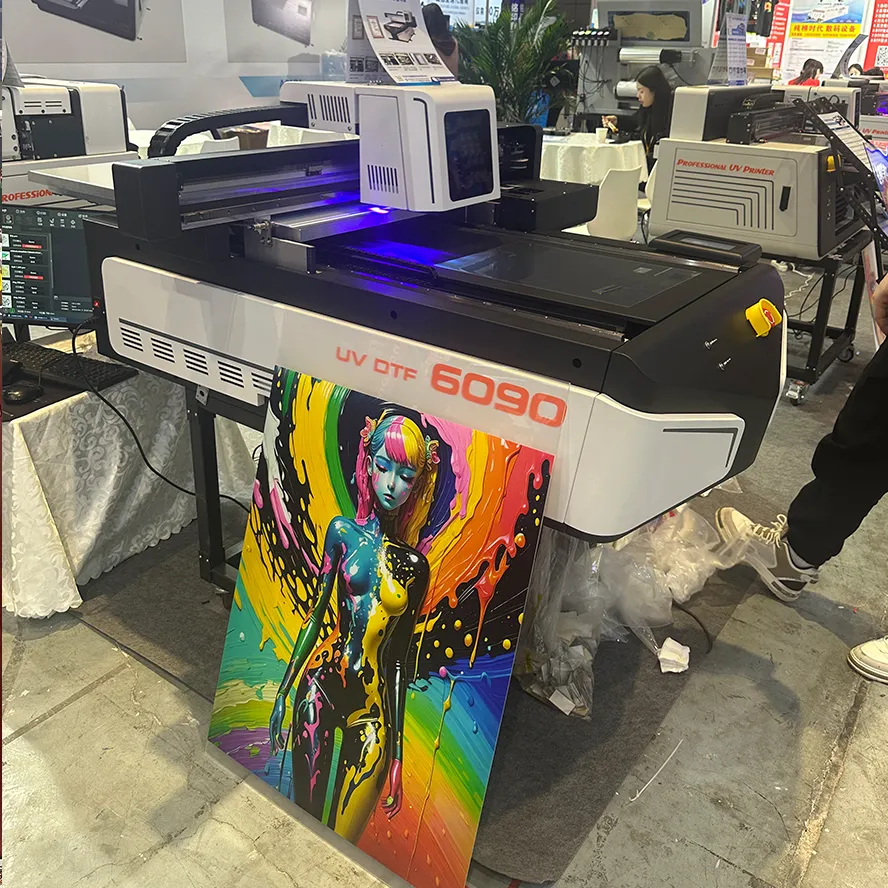

The ZUNSUNJET 6090 UV Flatbed Printer is a precision-engineered production device designed for long-term industrial use. To maintain stable output quality and extend the operational lifespan of core components—especially printheads—regular and disciplined maintenance is essential.

This guide outlines a practical Four-Step Maintenance Framework suitable for daily, weekly, monthly, and long-term operational routines. When consistently followed, these routines significantly reduce downtime, prevent nozzle blockage, and ensure reliable printing performance.

Step 1: Daily Routine – Basic Cleaning & Printhead Moisturizing (10 Minutes)

Daily maintenance at the end of each workday is the most effective measure to prevent printhead clogging and ensure stable performance.

1. Platform & Exterior Cleaning

• Power off the UV lamps and main switch.

• Use a lint-free cloth to wipe the print platform, removing dust, debris, and ink mist generated during operation.

• Clean the outer casing of the printer to prevent dust accumulation that may enter the machine through ventilation fans.

2. Printhead Moisturizing (Critical Step)

• Move the carriage to the right-hand maintenance position.

• Ensure the printhead sits firmly on the capping station to create a sealed, humid micro-environment.

• This prevents ink from drying inside the nozzles—crucial for extending printhead lifespan.

3. Ink Tank Check

• Confirm that all main and sub ink bottle caps are tightly closed.

• Proper sealing prevents contamination and ink deterioration.

Step 2: Weekly Routine – Deep Maintenance & Calibration (≈30 Minutes)

Weekly maintenance is recommended after every 5–7 days of operation or upon completion of large-volume jobs.

1. Linear Guide Rail & Encoder Strip Cleaning

Guide Rail

• Wipe the metal guide rail using lint-free cloth with high-purity alcohol.

• Apply a minimal amount of dedicated guide-rail lubricant to ensure smooth carriage movement and reduce wear.

Encoder Strip

• Clean the transparent encoder strip with alcohol-dampened cloth in one direction only.

• Avoid repeated back-and-forth wiping to prevent damaging the printed scale marks.

2. Automatic Cleaning Function

• Perform 1–2 cycles of the printer’s built-in auto cleaning program.

• Observe whether waste ink discharges smoothly into the waste ink bottle.

• Check the waste ink bottle level and empty it as needed to avoid overflow.

Step 3: Monthly Routine – System Inspection & Preventive Checks

A comprehensive monthly inspection helps detect early signs of wear and prevents costly downtime.

1. Ink Delivery System Inspection

• Check all ink tubes and connectors for cracks, air leaks, or ink seepage.

• Verify ink levels for all colors to plan timely consumables replenishment.

2. UV Lamp Housing Cleaning

• Use an alcohol wipe to clean dust or ink residue from the UV lamp cover.

• Clean lamp housing ensures full UV intensity and consistent curing quality.

3. Environment Verification

• Confirm that the printer operates in a stable environment:

  • Temperature: 25–28°C

  • Humidity: 40–60%

• Keep the machine away from vibration sources and direct sunlight.

Step 4: Long-Term Habits – Usage Optimization & Environmental Stability

Good operational habits are key to maximizing equipment lifespan.

1. Maintain a Stable Environment

• Ensure a clean, dust-free workspace with controlled temperature and humidity.

• Stable conditions reduce nozzle clogging and mechanical wear.

2. Use Certified Consumables Only

• Use original or certified UV ink, cleaning liquid, and maintenance fluid from ZUNSUNJET.

• Inferior consumables may shorten printhead life or damage ink circuits.

3. Ensure Power Stability

• Equip the printer with a voltage stabilizer or UPS.

• This protects electrical components from power fluctuation damage.

4. Idle-Time Protection

• If the printer will be unused for multiple days:

  • Perform printhead moisturizing before shutdown.

  • For extended idle periods, run a full cleaning cycle beforehand.

Conclusion

By implementing the Four-Step Maintenance Framework—Daily Cleaning, Weekly Deep Care, Monthly Inspection, and Long-Term Good Habits—operators can significantly extend the lifespan of the ZUNSUNJET 6090 UV Flatbed Printer.

Consistent maintenance ensures:

• Stable print quality,

• Reduced repair frequency,

• Lower long-term operating costs,

• Maximized return on equipment investment.

This maintenance routine is designed to support professional users in maintaining industrial-grade performance in demanding production environments.
